Why Your Transformer Winding Is Failing (And It’s Not Your Design)
You’ve been burned, haven’t you? The 8mm soft copper strip arrived, looked perfect, and then snapped during winding. Or it spring-back ruined your tight tolerances. Or the insulation adhesion failed. I’ve seen it a thousand times.
This article is the no-BS breakdown of exactly what makes or breaks a copper strip for transformer 8mm width soft. No theory. No hand-waving. Just the hard, physical realities that separate a 20-year transformer from a 2-year failure.
We’re comparing the two dominant material specs: Oxygen-Free Copper (C10100) vs. Electrolytic Tough Pitch (C11000), and we’re doing it without any utopian nonsense. You need answers. Here they are.
What’s the Real Difference Between C10100 and C11000 for 8mm Soft Strip?
Oxygen-Free (C10100): The Over-Engineered Beast
This is the purest form of copper you can buy. 99.99% pure. The oxygen content is below 5 ppm. For your copper strip for transformer 8mm width soft, this translates to maximum conductivity (105% IACS) and zero hydrogen embrittlement risk during annealing.
Verdict: Overkill for most dry-type transformers. But if you’re building a high-frequency, oil-immersed monster where eddy current losses are the enemy, C10100 is your weapon. The higher cost is justified by lower core losses over 20+ years. Don’t cheap out here.
Electrolytic Tough Pitch (C11000): The Workhorse
99.9% pure copper with 100-650 ppm oxygen. Conductivity still hits 100% IACS minimum certified. It’s cheaper, more ductile in soft (annealed) temper, and widely available.
Verdict: For 80% of transformer windings, this is your only option. The oxygen content doesn’t matter at 60 Hz. The cost savings are real. But—and this is a big but—if you buy strip with inconsistent oxygen levels, you get micro-cracks during tight-radius bending. That’s a factory-floor nightmare.
8mm Wide Soft Strip: The Critical Specs Everyone Ignores
Stop looking at just width. Width is the easy part. Here’s what kills your production:
Thickness Tolerance: The Silent Killer
Your copper strip for transformer 8mm width soft might be 8mm wide, but what about its thickness? ASTM B152 demands a tolerance of ±0.05mm for thickness under 1mm. EN 1652 is similar. If your supplier ships at -0.08mm, your winding tension jumps 15%, temperature rises, and insulation life halves. Change it. Reject loads that fail thickness uniformity.
Edge Condition: Burrs Will Destroy You
Burred edges on 8mm soft strip slice through layer insulation like a hot knife. You must specify slotted, rounded, or burr-free edges. Ask for a 0.1mm maximum burr. If they can’t deliver, walk away. A single burr creates a turn-to-turn short that kills a transformer in under 100 hours.
Surface Finish & Cleanliness
Soft copper strip for transformer winding must be clean. No residual oil, no oxide films, no dirt. Why? Because varnish adhesion fails on dirty surfaces. Your winding machine also hates dirty strip—it jams. Demand a surface roughness of Ra ≤ 0.8 μm. Anything rougher is a reject.
Soft Temper vs. Half-Hard: Why Soft Wins for Winding
You’d think half-hard would be stronger, right? Wrong for this application.

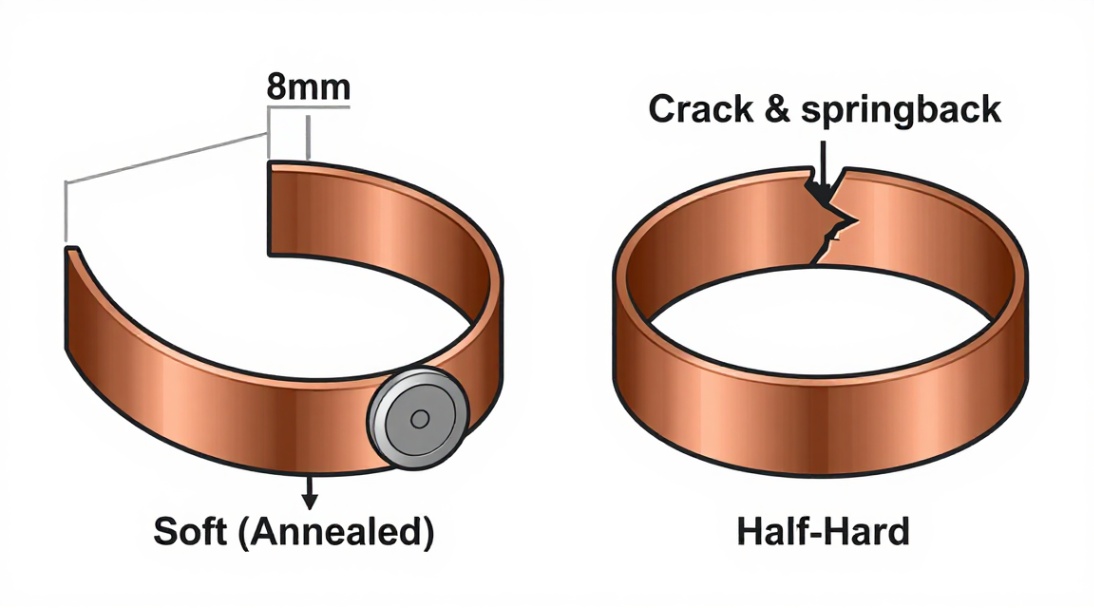

Soft (annealed) copper strip for transformer 8mm width has elongation of 30-40% minimum. Half-hard gives you 10-15%. When you bend soft copper around a sharp mandrel, it stays. No springback. No cracked corners. That’s the secret to tight, compact windings that don’t loosen over thermal cycles.
Half-hard strip fights you. It springs back, creating air gaps between layers. Air gaps kill heat transfer. Heat kills transformers. Use soft. Full stop.
Conductivity: The 100% IACS Minimum Myth
Most specs say minimum 100% IACS. That’s a baseline, not a target.
Logic: Every 0.5% IACS below 100% increases resistive losses by 0.5%. In a 1000 kVA transformer running 24/7, that’s thousands of dollars in wasted electricity per year. For high-efficiency designs, demand 101% IACS or higher. C10100 delivers 105%. C11000 delivers 100-102%. The choice is clear based on your loss budget.
Applications: Dry-Type vs. Oil-Immersed Reality Check
Dry-Type Transformers: Use C11000 soft strip. The windings are air or resin cooled. The biggest risk is insulation cracking from thermal expansion. Soft copper handles this. Don’t waste money on C10100.
Oil-Immersed Transformers: High-temperature oil + copper can be nasty. Oxygen-free C10100 is less likely to react with oil acids over decades. If your design calls for 8mm soft strip, specify C10100. You pay more upfront, but you avoid any hydrogen-induced micro-cracking risk during the final anneal.
Packaging: Spool Weight & Continuous Length
Your automated winding machine doesn’t care about copper purity if it runs out of strip mid-coil.
Critical Rule: Demand continuous lengths of at least 500 meters per spool for 8mm wide soft strip. Maximum spool weight should not exceed 100 kg for manual handling, or 250 kg for robotic. If your supplier splices strips together, reject the lot. Splices = weak points + friction + failure.
Final Verdict: The No-Nonsense Shopping Guide
Here’s your decision tree:
- Standard 60 Hz dry-type transformer: Buy C11000, soft temper, 8mm width, Ra ≤ 0.8 μm surface, thickness tolerance ±0.05mm, burr-free edges, continuous length 500m+. Reject anything less.
- High-efficiency or oil-immersed transformer: Buy C10100. Same dimensional spec. 105% IACS conductivity. Accept 20-30% price premium. It’s worth it.
- Avoid at all costs: Half-hard temper. Unknown purity. Mixed batches. Suppliers who cannot provide ASTM B152 or EN 1652 certification.
Your Next Move (The Hard CTA)
Don’t read this and then go back to your old supplier hoping they improved.
Do this today: Send your current copper strip for transformer 8mm width soft specs to three new suppliers. Demand a sample 10-meter piece. Test it yourself: bend radius, conductivity, surface inspection, elongation. If they hesitate, move on.
Buy from us. We stock C10100 and C11000 8mm soft strip. We guarantee 100% IACS minimum, continuous lengths, burr-free edges, and full certification. Every order is tested before shipment. No exceptions. Click the button below or call the number on your screen. Order your sample kit today. Don’t build a transformer on hope. Build it on certified copper.
