1. What Sort Of Copper Strip material Exist?
Copper strip material, a critical foundation in the field of electrical engineering and commercial production, incorporates a varied variety of variants customized to certain applications. From electrolytic challenging pitch (ETP) copper to phosphorus-deoxidized copper and oxygen-free high-conductivity (OFHC) copper, each kind is engineered to deliver exceptional efficiency.
Electrolytic Tough Pitch (ETP) Copper: This variant, with a minimal copper content of 99.9%, is renowned for its outstanding conductivity and thermal security, making it perfect for power transmission and motor windings.
Phosphorus Deoxidized Copper: Enhanced with phosphorus to eliminate oxygen pollutants, this material masters high-temperature atmospheres and is commonly used in transformers and electric adapters.
OxygenFree HighConductivity (OFHC) Copper: With near-zero oxygen content, OFHC copper offers exceptional resistance to oxidation and is the go-to selection for accuracy electronic devices and aerospace parts.
Furthermore, copper strips can be customized with surface area therapies (e.g., tinplating, nickelplating) to increase deterioration resistance or solderability, guaranteeing versatility throughout markets.
2. Core Features of Copper Strip Product
2.1 Physical and Chemical Residences
Copper strip materialis commemorated for its resistant physical properties and chemical inertness. Trick characteristics consist of:
High Electrical Conductivity: Copper’s conductivity (58 MS/m) places second just to silver, ensuring minimal energy loss in electrical systems.
Thermal Conductivity: With a thermal conductivity of 401 W/m · K, copper effectively dissipates warm, important for thermal management in electronic devices.
Mechanical Toughness: Despite its malleability, copper strips show exceptional tensile toughness (up to 220 MPa), allowing resilience in architectural applications.
Rust Resistance: A self-forming passive oxide layer (Cu ₂ O) safeguards against ecological destruction, also in humid or saline conditions.
Thermal Growth Coefficient: Reduced growth (16.5 µm/ m · ° C) ensures dimensional security under thermal anxiety, critical for precision design.
Chemically, copper strip material withstands nonoxidizing acids (e.g., water down hydrochloric acid) and stays inert in neutral atmospheres. Nevertheless, it reacts with strong oxidizing agents (e.g., concentrated nitric acid), requiring protective finishes in aggressive environments.
| Parameter | Specification | Notes |
| Material Type | Pure Copper (e.g., T1, T2, T3, C1100, TU1, TU2, OFHC) | Grades vary based on purity, oxygen content, and application requirements. |
| Density | 8.94 g/cm³ (at 20°C) | Slightly higher than iron and significantly denser than aluminum. |
| Melting Point | 1083.4°C (1982.1°F) | Melting point remains consistent across pure copper variants. |
| Boiling Point | 2562°C (4643.6°F) | Extremely high boiling point ensures stability in high-temperature environments. |
| Thermal Conductivity | 386.4 W/(m·K) at 20°C | One of the highest thermal conductivities among metals, ideal for heat dissipation. |
| Electrical Conductivity | ~58 MS/m (minimum 100% IACS) | Second only to silver; essential for power transmission and electronics. |
| Coefficient of Thermal Expansion | 16.5 µm/m·°C (at 20–100°C) | Ensures dimensional stability under thermal stress. |
| Elastic Modulus | 100–110 GPa | Measures stiffness; critical for structural applications. |
| Shear Modulus | 45–50 GPa | Determines resistance to shear stress in mechanical systems. |
| Poisson’s Ratio | ~0.33 | Describes lateral strain under axial loading; important for material deformation analysis. |
| Tensile Strength | Up to 220 MPa (annealed) | Varies with temper (e.g., O, H, SH) and alloying. |
| Yield Strength | ~70–140 MPa (depending on temper) | Influenced by cold working and heat treatment processes. |
| Ductility | High elongation (≥30% in annealed forms) | Enables easy forming, bending, and stamping without cracking. |
| Hardness | Brinell Hardness: 35–130 HB (varies with temper) | Soft in annealed state, hardenable through cold working. |
| Color | Rose-red (freshly cut); develops purple oxide layer (Cu₂O) over time | Aesthetic appeal in decorative and architectural applications. |
| Surface Finish | Available as matte, mirror-polished, or textured | Customizable for specific industrial or aesthetic needs. |
| Thickness Range | 0.1–3.0 mm (standard); custom thickness available | Suitable for microelectronics (thin strips) to heavy-duty infrastructure (thick slabs). |
| Width Range | 30–1000 mm (standard); customizable | Accommodates diverse manufacturing and engineering requirements. |
| Corrosion Resistance | Resists oxidation in dry environments; forms protective Cu₂O layer in humid air | Requires protective coatings (e.g., tin, nickel) in aggressive chemical environments. |
| Machinability | Excellent (rated 80–90% relative to free-cutting brass) | Easy to cut, bend, and weld; reduces manufacturing costs. |
| Thermal Stability | Maintains properties up to ~370°C (avoid prolonged exposure in oxidizing atmospheres) | Limited by “hydrogen embrittlement” risk in high-temperature hydrogen-rich environments. |
2.2 Useful Properties
Past its integral traits, copper strip material beams in useful flexibility:
Electromagnetic Shielding: Its high conductivity blocks electromagnetic disturbance (EMI), protecting sensitive electronic devices.
Thermal Bridging: Made use of in warmth exchangers and cooling systems to link thermal gaps between parts.
Machinability: Copper’s softness enables very easy cutting, flexing, and stamping, reducing manufacturing costs.
Biocompatibility: In clinical gadgets, copper strips are utilized for their antimicrobial properties, combating pathogens in healthcare setups.
3. Benefits and Downsides of Copper Strip Material
3.1 Key Advantages
Unparalleled Conductivity: Copper’s conductivity makes certain energy effectiveness in power grids, reducing operational costs.
Longevity: With correct upkeep, copper strips can last years, outmatching options like aluminum.
Sustainability: Completely recyclable, copper strips line up with round economic climate goals, minimizing environmental impact.
Layout Versatility: Available in thin evaluates (0.05 mm) to thick pieces (50 mm), catering to microelectronics and heavy-duty facilities.
Integrity: Confirm performance history in mission-critical applications, from satellites to subsea cables, making certain zero-failure efficiency.
3.2 Limitations and Difficulties
Expense: More than light-weight aluminum, though long-term financial savings from effectiveness balance out the first expenditures.
Weight: Much heavier than options, restricting usage in weight-sensitive fields like aerospace.
Deterioration in Sulfurous Environments: Requires safety procedures in locations with sulfur dioxide direct exposure (e.g., industrial zones).
Processing Level of sensitivity: Needs precise managing throughout welding or soldering to prevent problems.
4. Why is Copper Strip material Still the “Gold Requirement”?
In an era of rapid technological innovation, the copper strip material remains the uncompromising criterion for electrical conductivity. Below’s why:
Historical Dominance: For over a century, copper has been the default option for power transmission, from Edison’s very early grids to contemporary smart cities. Its proven integrity develops trust in crucial infrastructure.
Scientific Superiority: No material matches copper’s conductive synergy of electric and thermal buildings. While choices like graphene show promise, they lack industrial scalability and cost-effectiveness.
Economic Performance: Though originally more expensive, copper’s energy-saving prospective (e.g., 30% reduced losses in transformers) makes a certain ROI within 5– 10 years.
Regulatory Endorsement: Specifications like ASTM B187 and EN 1652 required copper for high-reliability applications, reinforcing its sector gold basic standing.
Adaptability: Advancements like nanocoatings and alloyed variations (e.g., CuNiSi) broaden copper’s energy in next-gen modern technologies, from 5G networks to quantum computing.
5. Applications of Copper Strip Product
Copper strip material’s convenience seals its duty across 14 major sectors:
Power Generation & Distribution: Busbars, expense lines, and substation components.
Renewable Resource: Solar panel interconnects, wind generator generators, and battery terminals.

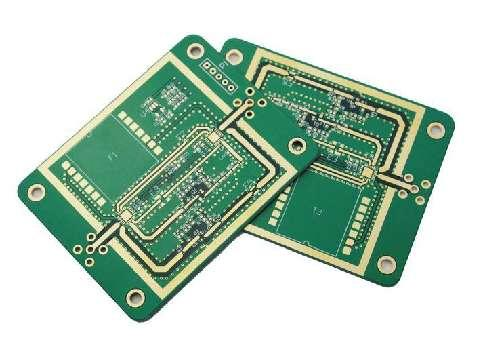

Electronic devices: Printed circuit boards (PCBs), warm sinks, and EMI protecting.
Transport: Electric car (EV) electric motor windings, rail traction systems, and aquatic propulsion.
Building and construction: Electric circuitry, a/c systems, and lightning defense.
Medical Devices: MRI machine coils, medical devices, and antimicrobial surface areas.
6. Technical Advantages of Copper Strip Material
Copper strip product’s technological edge hinges on its precision engineering:
Advanced Production: Techniques like rolling and annealing maximize grain structure, improving ductility and uniformity.
Personalization: Surface surfaces (e.g., matte, mirror-polished) and tapered accounts meet particular niche demands.
Combination with Smart Tech: Compatible with additive production and AI-driven anticipating upkeep, guaranteeing futureproof options.
Environmental Safety and Security: Harmless and fire-resistant, copper strips adhere to RoHS and REACH regulations.
Global Supply Chain: A fully grown network of refineries, makers, and recyclers ensures regular, high-quality quality and on-time shipment.
Verdict: The Impregnable Tradition of Copper Strip Material.
In a world racing towards sustainability and digital improvement, the copper strip material stands as a beacon of innovation and integrity. Its unparalleled conductivity, proven record, and flexibility to emerging technologies guarantee its reign as the gold standard in electric design. Whether powering the future generation of EVs, making it possible for ultrafast 5G networks, or securing clinical tools, copper strip material remains the cornerstone of progress.
Pick copper strip material not just for its performance, but for its legacy. Partner with reliable suppliers who focus on quality, sustainability, and technology to unlock your tasks’ full potential.
